HOSE PROTECTION
HoseGuard protects your hoses and cables, and improves their lifetime with simultaneous cost reduction.

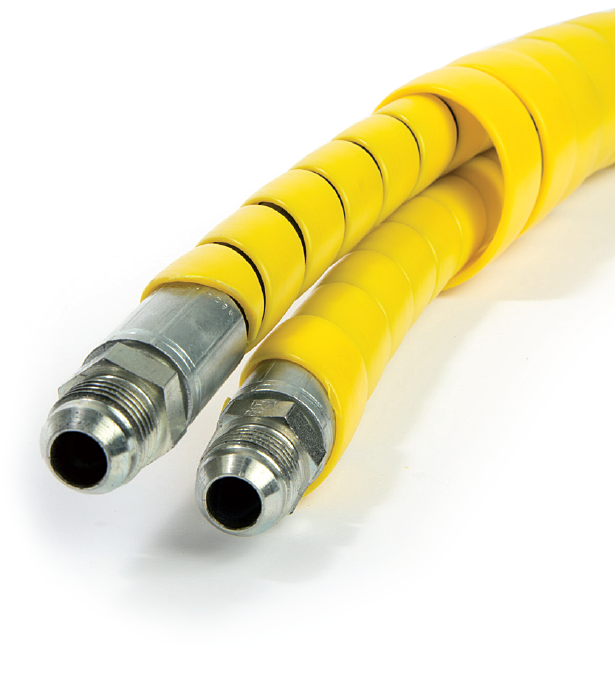

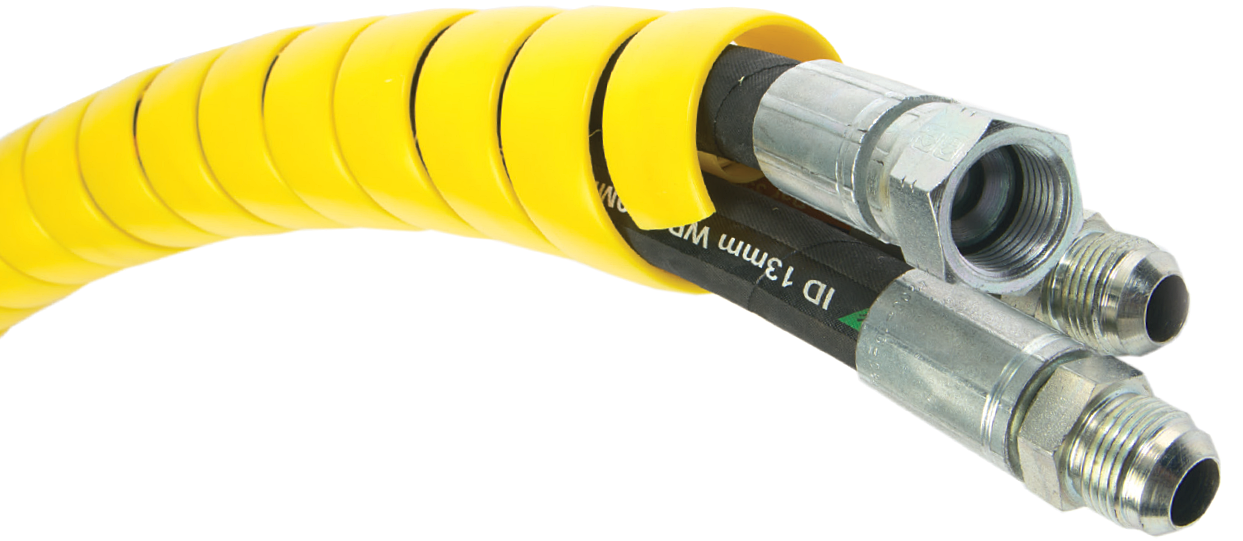

HoseGuard protection is made of high quality HDPE material. This ensures the protection of your hoses against impact, crushing and abrasion with a good elasticity. You can use HoseGuard as single protection or for hose bundling. Our standard colours are black and yellow. We have the possibility to produce individually lengths and colours. Packed in stable folded and environmentally friendly cardboard boxes (see table below).
Features and benefits of HoseGuard:
- Protection against the abrasion of the hose cover
- Protects the hose against hits
- Oil and solvent resistant
- High UV Protection
- Protects the hose from drying and cracking
- Temperature range -50°C..+80°C (short time +120°C)
- Easy installation
- Ideal for hose bundling
- Preventing accidents by yellow luminous colour
- Black hose protection prevents glare when working in twilight

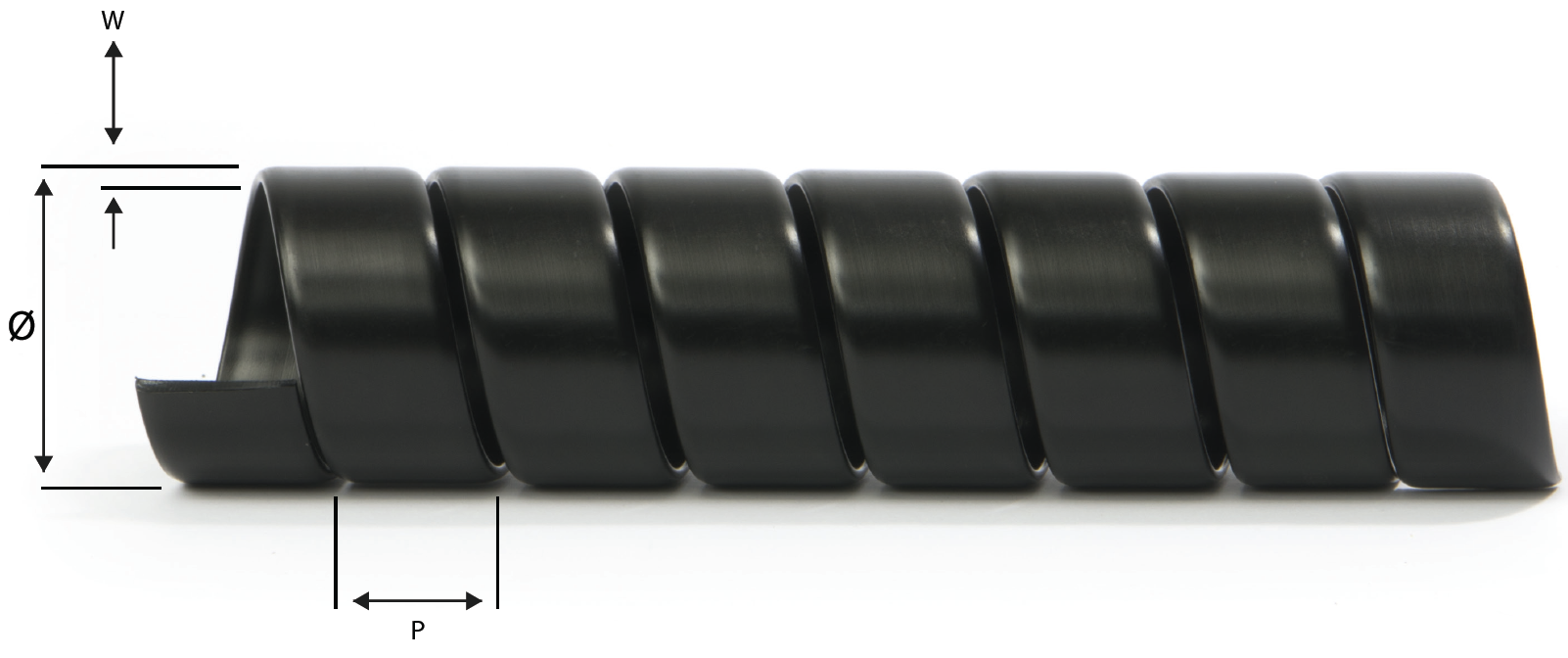

| Ø OD mm | Ø ID mm | W WT mm | P width mm | weight kg/m | length m | pack. type |
| 12 mm | 9,2 | 1,4 | 13 | 0,04 | 25 | A |
| 16 mm | 13,4 | 1,3 | 13 | 0,06 | 25 | A |
| 20 mm | 16 | 2 | 20 | 0,09 | 25 | B |
| 25 mm | 20,6 | 2,2 | 24 | 0,15 | 25 | C |
| 32 mm | 27 | 2,5 | 24 | 0,22 | 25 | D |
| 40 mm | 34,6 | 2,7 | 24 | 0,3 | 25 | E |
| 50 mm | 43,2 | 3,4 | 30 | 0,4 | 25 | F |
| 63 mm | 55,6 | 3,7 | 37 | 0,53 | 25 | G |
| 75 mm | 66,2 | 4,4 | 42 | 0,73 | 20 | G |
| 90 mm | 80,2 | 4,9 | 45 | 1,2 | 20 | H |
| 110 mm | 99 | 5,5 | 50 | 1,76 | 15 | H |
| 125 mm | 113 | 6 | 52 | 1,9 | 15 | H |
| 140 mm | 127 | 6,5 | 55 | 2,5 | 10 | H |

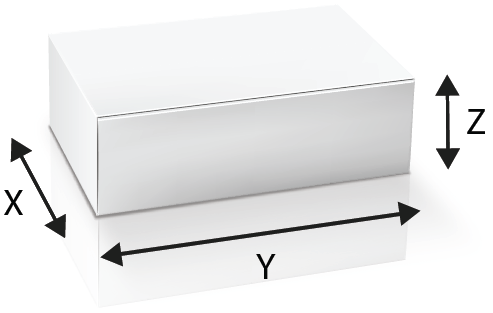

| pack. type | X mm | Y mm | Z mm |
| A | 400 | 400 | 100 |
| B | 400 | 400 | 150 |
| C | 600 | 400 | 150 |
| D | 600 | 400 | 250 |
| E | 600 | 400 | 380 |
| F | 800 | 600 | 280 |
| G | 800 | 600 | 430 |
| H | 800 | 600 | 630 |
